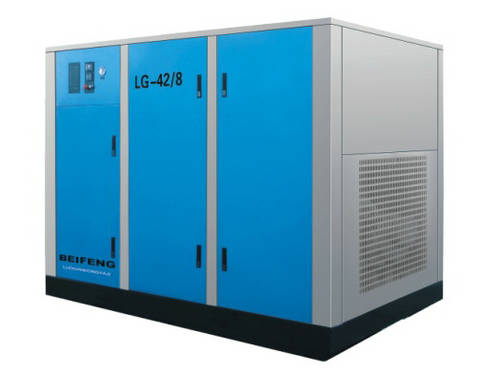

水冷固定式选型表

文章来源：admin 更新时间：2013-06-30

型 号	排气量 m3/min	排气 压力 Mpa	功率 (KW)	重量 (kg)	外型尺寸 (mm) L×W×H	出口管径	噪音 Db(A)
LGF-16.2/0.7	16.2	0.7	90	2150	2322×1516×1820	DN65	68±2
LGF-15.2/0.8	15.2	0.8
LGF-14.3/1.0	14.3	1.0
LGF-12.9/1.2	12.9	1.2
LGF-21.6/0.7	21.6	0.7	110	3000	2625×1736×1905	DN80	68±2
LGF-20.1/0.8	20.1	0.8
LGF-17.5/1.0	17.5	1.0
LGF-16.0/1.2	16.0	1.2
LGF-25.2/0.7	25.2	0.7	132	3550	2625×1736×1905	DN80	72±2
LGF-24.0/0.8	24.0	0.8
LGF-21.0/1.0	21.0	1.0
LGF-18.3/1.2	18.3	1.2
LGF-28.7/0.7	28.7	0.7	160	4050	2753×1768×1985	DN80	72±2
LGF-27.6/0.8	27.6	0.8
LGF-25.3/1.0	25.3	1.0
LGF-22.4/1.2	22.4	1.2
LGF-32.5/0.7	32.5	0.7	185	4250	2753×1768×1985	DN80	72±2
LGF-30.8/0.8	30.8	0.8
LGF-28.2/1.0	28.2	1.0
LGF-25.1/1.2	25.1	1.2
LGF-36.8/0.7	36.8	0.7	220	4600	3034×1944×2045	DN100	76±2
LGF-34.7/0.8	34.7	0.8
LGF-30.8/1.0	30.8	1.0
LGF-28.9/1.2	28.9	1.2
LGF-42.7/0.7	42.7	0.7	250	5100	3034×1944×2045	DN100	76±2
LGF-40.8/0.8	40.8	0.8
LGF-38.1/1.0	38.1	1.0
LGF-34.9/1.2	34.9	1.2
LGF-50.6/0.7	50.6	0.7	280	7800	3450×2140×2250	DN100	84±2
LGF-48.8/0.8	48.8	0.8
LGF-46.5/1.0	46.5	1.0
LGF-41.5/1.2	41.5	1.2
LGF-68.8/0.7	68.8	0.7	355	9500	4126×2146×2135	DN100	84±2
LGF-66.7/0.8	66.7	0.8
LGF-56.2/1.0	56.2	1.0
LGF-47.8/1.2	47.8	1.2
LGF-83.1/0.7	83.1	0.7	450	9800	4126×2146×2135	DN125	86±2
LGF-82.2/0.8	82.2	0.8
LGF-71.5/1.0	71.5	1.0
LGF-62.2/1.2	62.2	1.2
压缩机级数:单级　 排气温度(℃):水冷:<45℃ 电源(V/ph/Hz):380、460/3/50、60（含国外） 环境温度：-5～+45 驱动方式:直联　 启动方式:Y-△启动　 冷却方式:水冷
