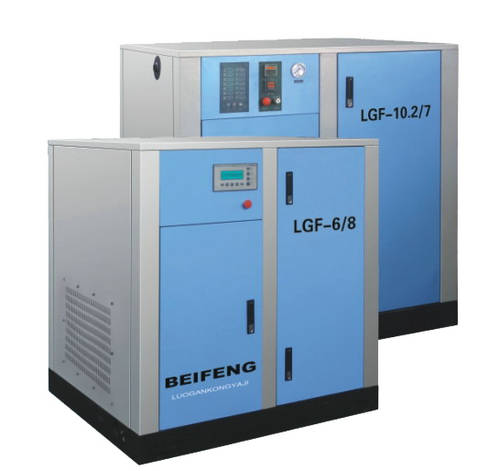

风冷固定式选型表

文章来源：admin 更新时间：2013-07-01

型 号	排气量 m3/min	排气压力 Mpa	功率 (KW)	重量 (kg)	外型尺寸 (mm) L×W×H	出口管径	噪音 Db(A)
LGF-1.20/0.7	1.20	0.7	7.5	240	890×630×920	G3/4″	62±2
LGF-1.10/0.8	1.10	0.8
LGF-0.95/1.0	0.95	1.0
LGF-0.80/1.2	0.80	1.2
LGF-1.65/0.7	1.65	0.7	11	420	826×796×1060	G1″	63±2
LGF-1.53/0.8	1.53	0.8
LGF-1.32/1.0	1.32	1.0
LGF-1.10/1.2	1.10	1.2
LGF-2.25/0.7	2.25	0.7	15	440	846×826×1080	G1″	63±2
LGF-2.03/0.8	2.03	0.8
LGF-1.82/1.0	1.82	1.0
LGF-1.55/1.2	1.55	1.2
LGF-3.22/0.7	3.22	0.7	18.5	560	926×926×1170	G1 1/4″	63±2
LGF-3.01/0.8	3.01	0.8
LGF-2.52/1.0	2.52	1.0
LGF-2.30/1.2	2.30	1.2
LGF-3.60/0.7	3.60	0.7	22	600	926×926×1170	G1 1/4″	65±2
LGF-3.56/8	3.56	0.8
LGF-3.07/10	3.07	1.0
LGF-2.84/12	2.84	1.2
LGF-5.20/0.7	5.20	0.7	30	680	956×956×1260	G1 1/4″	65±2
LGF-5.06/0.8	5.06	0.8
LGF-4.53/1.0	4.53	1.0
LGF-3.90/1.2	3.90	1.2
LGF-6.58/0.7	6.58	0.7	37	950	1046×1046×1340	G1 1/2″	65±2
LGF-6.26/0.8	6.26	0.8
LGF-5.80/1.0	5.80	1.0
LGF-5.06/1.2	5.06	1.2
LGF-7.36/0.7	7.36	0.7	45	1050	1126×1076×1390	G1 1/2″	68±2
LGF-7.10/0.8	7.10	0.8
LGF-6.47/1.0	6.47	1.0
LGF-5.80/1.2	5.80	1.2
LGF-10.8/0.7	10.8	0.7	55	1610	1467×1308×1595	G2″	68±2
LGF-10.1/0.8	10.1	0.8
LGF-8.50/1.0	8.50	1.0
LGF-7.69/1.2	7.69	1.2
LGF-13.5/0.7	13.5	0.7	75	1720	1517×1377×1595	G2″	72±2
LGF-12.7/0.8	12.7	0.8
LGF-11.3/1.0	11.3	1.0
LGF-10.0/1.2	10.0	1.2
压缩机级数:单级　 排气温度(℃):风冷:<环境温度+15℃ 电源(V/ph/Hz):380、460/3/50、60（含国外） 环境温度：-5～+45 驱动方式:皮带传动　 启动方式:Y-△启动　 冷却方式:风冷

型号	排气量 m3/min	排气 压力 Mpa	功率 (KW)	重量 (kg)	外型尺寸(mm) L×W×H	出口 管径	噪音 Db(A)
LGF-3.60/0.7	3.60	0.7	22	820	1525×930×1555	G1 1/4″	63±2
LGF-3.56/0.8	3.56	0.8
LGF-3.07/1.0	3.07	1.0
LGF-2.84/1.2	2.84	1.2
LGF-6.58/0.7	6.58	0.7	37	1120	1715×1090×1635	G1 1/2″	63±2
LGF-6.26/0.8	6.26	0.8
LGF-5.80/1.0	5.80	1.0
LGF-5.06/1.2	5.06	1.2
LGF-7.36/0.7	7.36	0.7	45	1310	1765×1110×1475	G1 1/2″	64±2
LGF-7.10/0.8	7.10	0.8
LGF-6.47/1.0	6.47	1.0
LGF-5.80/1.2	5.80	1.2
LGF-10.8/0.7	10.8	0.7	55	1750	2045×1250×1705	G2″	65±2
LGF-10.1/0.8	10.1	0.8
LGF-8.50/1.0	8.50	1.0
LGF-7.69/1.2	7.69	1.2
LGF-13.5/0.7	13.5	0.7	75	1820	2045×1250×1705	G2″	68±2
LGF-12.7/0.8	12.7	0.8
LGF-11.3/1.0	11.3	1.0
LGF-10.0/1.2	10.0	1.2
LGF-16.2/0.7	16.2	0.7	90	2200	2329×1516×1745	DN65	68±2
LGF-15.2/0.8	15.2	0.8
LGF-14.3/1.0	14.3	1.0
LGF-12.9/1.2	12.9	1.2
LGF-21.6/0.7	21.6	0.7	110	2950	2578×1656×1920	DN65	68±2
LGF-20.1/0.8	20.1	0.8
LGF-17.5/1.0	17.5	1.0
LGF-16.0/1.2	16.0	1.2
LGF-25.2/0.7	25.2	0.7	132	3550	2578×1656×1920	DN65	72±2
LGF-24.0/0.8	24.0	0.8
LGF-21.0/1.0	21.0	1.0
LGF-18.3/1.2	18.3	1.2
LGF-28.7/0.7	28.7	0.7	160	3880	2856×1898×1895	DN80	72±2
LGF-27.6/0.8	27.6	0.8
LGF-25.3/1.0	25.3	1.0
LGF-22.4/1.2	22.4	1.2
LGF-32.5/0.7	32.5	0.7	185	4050	2856×1898×1895	DN80	72±2
LGF-30.8/0.8	30.8	0.8
LGF-28.2/1.0	28.2	1.0
LGF-25.1/1.2	25.1	1.2
LGF-36.8/0.7	36.8	0.7	220	4700	3092×1944×2143	DN80	76±2
LGF-34.7/0.8	34.7	0.8
LGF-30.8/1.0	30.8	1.0
LGF-28.9/1.2	28.9	1.2
LGF-42.7/0.7	42.7	0.7	250	5100	3092×1944×2143	DN80	76±2
LGF-40.8/0.8	40.8	0.8
LGF-38.1/1.0	38.1	1.0
LGF-34.9/1.2	34.9	1.2
压缩机级数:单级　 排气温度(℃):风冷:<环境温度+15℃ 电源(V/ph/Hz):380、460/3/50、60（含国外） 环境温度：-5～+45 驱动方式:直联　 启动方式:Y-△启动　 冷却方式:风冷
