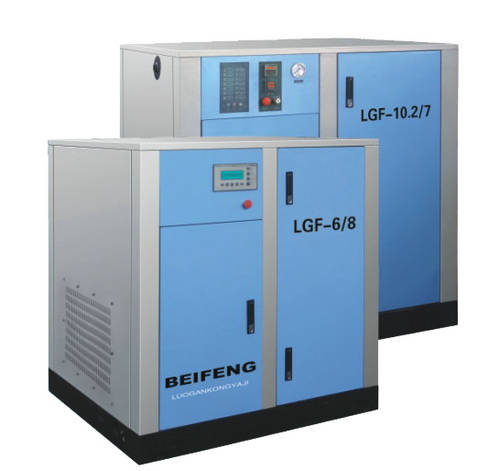

变频式螺杆空压机选型表

文章来源：admin 更新时间：2013-06-30

型 号	排气量 m3/min	排气 压力 Mpa	功率 (KW)	重量 (kg)	外型尺寸(mm) L×W×H	出口管径	噪音 Db(A)
LGF-3.22/0.7	3.22	0.7	18.5	680	1216×986×1295	G1 1/4″	63±2
LGF-3.01/0.8	3.01	0.8
LGF-2.52/1.0	2.52	1.0
LGF-2.30/1.2	2.30	1.2
LGF-3.60/0.7	3.60	0.7	22	730	1216×986×1295	G1 1/4″	65±2
LGF-3.56/0.8	3.56	0.8
LGF-3.07/1.0	3.07	1.0
LGF-2.84/1.2	2.84	1.2
LGF-5.20/0.7	5.20	0.7	30	790	1256×1016×1295	G1 1/4″	65±2
LGF-5.06/0.8	5.06	0.8
LGF-4.53/1.0	4.53	1.0
LGF-3.90/1.2	3.90	1.2
LGF-6.58/0.7	6.58	0.7	37	1160	1486×1074×1455	G1 1/2″	65±2
LGF-6.26/0.8	6.26	0.8
LGF-5.80/1.0	5.80	1.0
LGF-5.06/1.2	5.06	1.2
LGF-7.36/0.7	7.36	0.7	45	1250	1556×1184×1485	G1 1/2″	68±2
LGF-7.10/0.8	7.10	0.8
LGF-6.47/1.0	6.47	1.0
LGF-5.80/1.2	5.80	1.2
LGF-10.8/0.7	10.8	0.7	55	1870	1696×1334×1695	G2″	68±2
LGF-10.1/0.8	10.1	0.8
LGF-8.50/1.0	8.50	1.0
LGF-7.69/1.2	7.69	1.2
LGF-13.5/0.7	13.5	0.7	75	2010	1766×1376×1695	G2″	72±2
LGF-12.7/0.8	12.7	0.8
LGF-11.3/1.0	11.3	1.0
LGF-10.0/1.2	10.0	1.2
LGF-10.8/0.7	10.8	0.7	55	1950	2060×1250×1705	G2″	65±2
LGF-10.1/0.8	10.1	0.8
LGF-8.50/1.0	8.50	1.0
LGF-7.69/1.2	7.69	1.2
LGF-13.5/0.7	13.5	0.7	75	2050	2060×1250×1705	G2″	68±2
LGF-12.7/0.8	12.7	0.8
LGF-11.3/1.0	11.3	1.0
LGF-10.0/1.2	10.0	1.2
LGF-16.2/0.7	16.2	0.7	90	2830	2376×1616×1785	DN65	68±2
LGF-15.2/0.8	15.2	0.8
LGF-14.3/1.0	14.3	1.0
LGF-12.9/1.2	12.9	1.2
LGF-21.6/0.7	21.6	0.7	110	3700	2546×1666×1950	DN65	68±2
LGF-20.1/0.8	20.1	0.8
LGF-17.5/1.0	17.5	1.0
LGF-16.0/1.2	16.0	1.2
LGF-25.2/0.7	25.2	0.7	132	4350	2546×1666×1950	DN65	72±2
LGF-24.0/0.8	24.0	0.8
LGF-21.0/1.0	21.0	1.0
LGF-18.3/1.2	18.3	1.2
压缩机级数:单级　 排气温度(℃):风冷:<环境温度+15℃ 电源(V/ph/Hz):380、460/3/50、60（含国外） 环境温度：-5～+45 驱动方式:皮带传动　 启动方式:变频启动　 冷却方式:风冷
